Huawei CloudEngine S5735-S48P4X 48 Port Gigabit RJ45 4 10G SFP+ Layer 3 POE Switch with SNMP Function Network Switches Product

CloudEngine S5735S-S Series Switches
CloudEngine S5735-S series switches are developed based on next-generation high-performing hardware and Versatile Routing Platform (VRP). CloudEngine S5735-S switches support simplified operations and maintenance (O&M), and flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. CloudEngine S5735-S switches can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.

CloudEngine S5735- S48P4X Specification

Product Name	CloudEngine S5735- S48P4X
Fixed port	• 48 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports
Power supply type	• 1+1 power supply backup
Switch Capacity	176 Gbps/432 Gbps

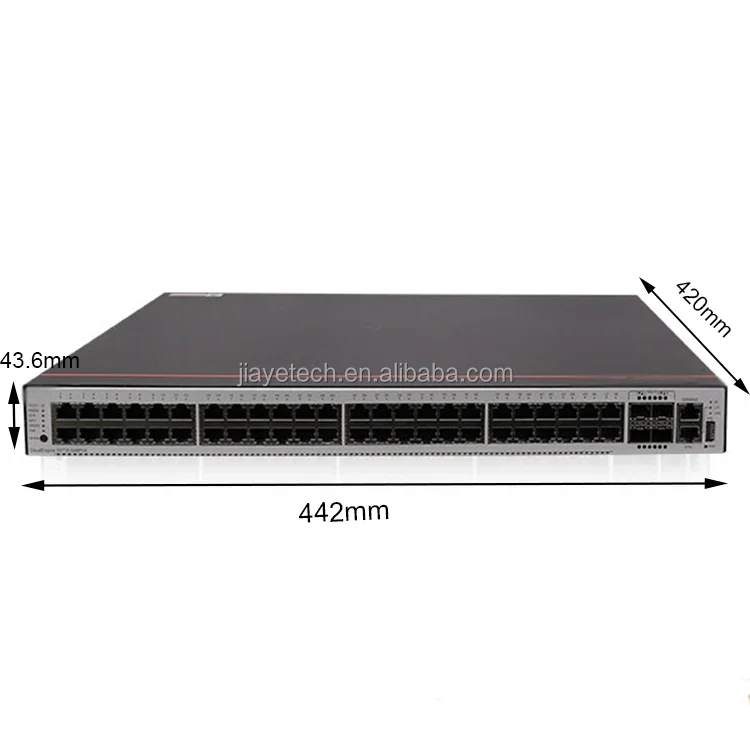

Dimensions (W x D x H)	43.6 mm x 442 mm x 420 mm
Chassis height	1U
POE+	support
Chassis weight	7.64KG
Storage temperat	-40°C to +70°C
Relative humidity	5% to 95% (non- condensing)

CloudEngine S5735- S48T4X

•48 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports •1+1 power supply backup •Forwarding performance: 132 Mpps Switching capacity: 176 Gbps/432 Gbps

Contact us》》

CloudEngine S5735- S48P4X

•48 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports •1+1 power supply backup PoE+

Forwarding performance: 132Mpps
Switching capacity: 176 Gbps/432 Gbps

Contact us 》》

CloudEngine S5735- S48S4X

•48 x GE SFP ports, 4 x 10 GE SFP+ ports •1+1 power supply backup •Forwarding performance: 132 Mpps Switching capacity: 176 Gbps/432 Gbps

Contact us》》

Small- or Medium-scale Enterprise Campus Network

CloudEngine S5735-L series switches can be deployed at the aggregation layer of a campus network to build a high- performance, multi-service, and highly reliable enterprise network.

Large-Scale Enterprise Campus Network

CloudEngine S5735-L series switches can be deployed at the access layer of a campus network to build a high-performance and highly reliable enterprise network.
