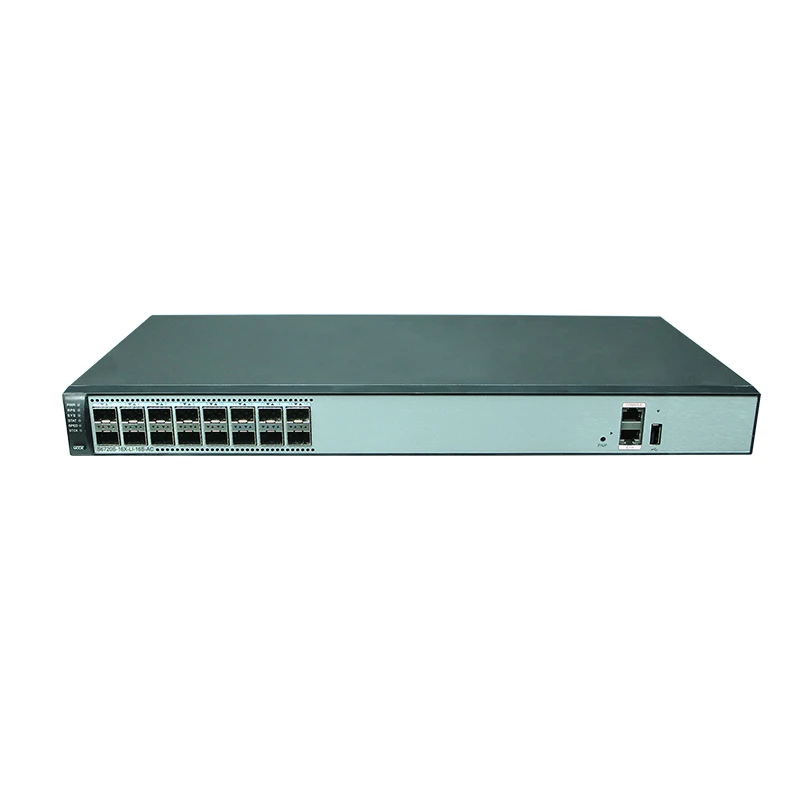

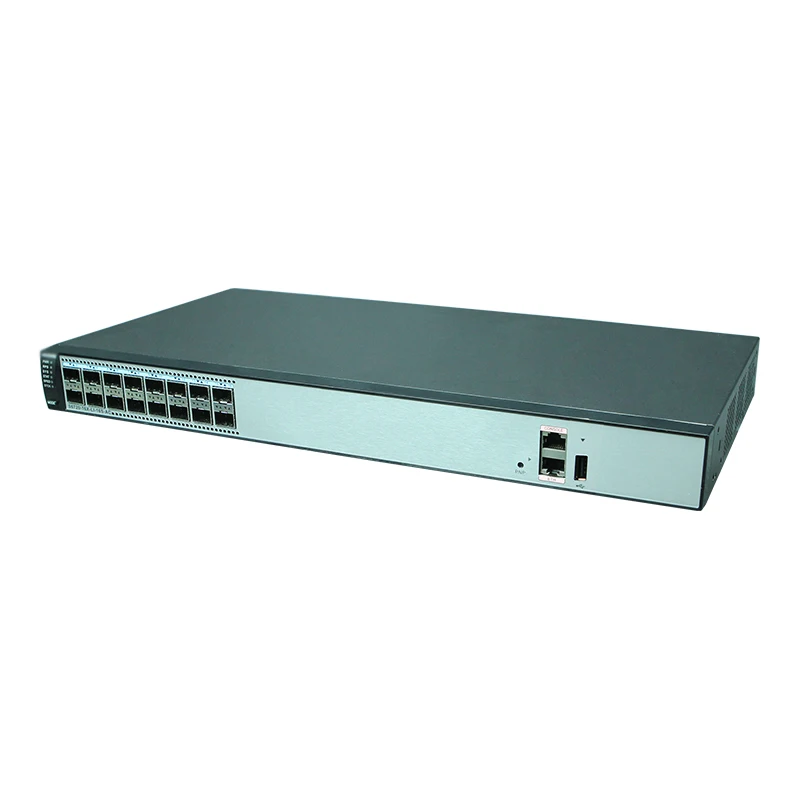

Huawei 16-Port 10G SFP+ Layer 3 Managed Switch Enterprise Network Switch S6720S-16X-LI-16S-AC

Quantity:

Brand: Adidas

SKU:{{ product.sku }}

Model: {{ product.model }}

S6720-LI series are next-generation simplified all-10 GE fixed switches and can be used for 10 GE access on campus and data center networks.

Product Model	S6720-16X-LI-16S-AC S6720S-16X-LI-16S-AC	S6720-26Q-LI-24S-AC S6720S-26Q-LI-24S-AC	S6720-32X-LI-32S-AC S6720S-32X-LI-32S-AC
Switching Capacity	1.28 Tbit/s; 12.8 Tbit/s
Packet Forwarding Rate	240 Mpps	240 Mpps	240 Mpps
Fixed Ports	16 x 10 GE SFP+ ports	24 x 10 GE SFP+ ports 2 x 40 GE QSFP+ ports	32 x 10 GE SFP+ ports
MAC Address Table	32K MAC address entries MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses
VLAN Features	4,094 VLANs Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping Basic QinQ and selective QinQ
IP Routing	Static routing, RIP, and OSPF VRRP Policy-based routing Routing policies
Interoperability	VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP)

High-Density 10 GE Access and 40 GE Uplink Ports

Provides high-density 10 GE ports for larger bandwidth.

Space Saving

220 mm deep for easy installation in a 300 mm deep cabinet.

SVF for Ultra-Simplified Network O&M

Supports Super Virtual Fabric (SVF) to virtualize the network architecture of ‘Core/Aggregation Switches + Access Switches + APs’
into a single NE for simplified network O&M. The S6720-LI can work as an SVF Client that is plug-and-play.
