Huawei CloudEngine S12700E Advanced High-Performance Enterprise Switch for Data Center & Campus Networks

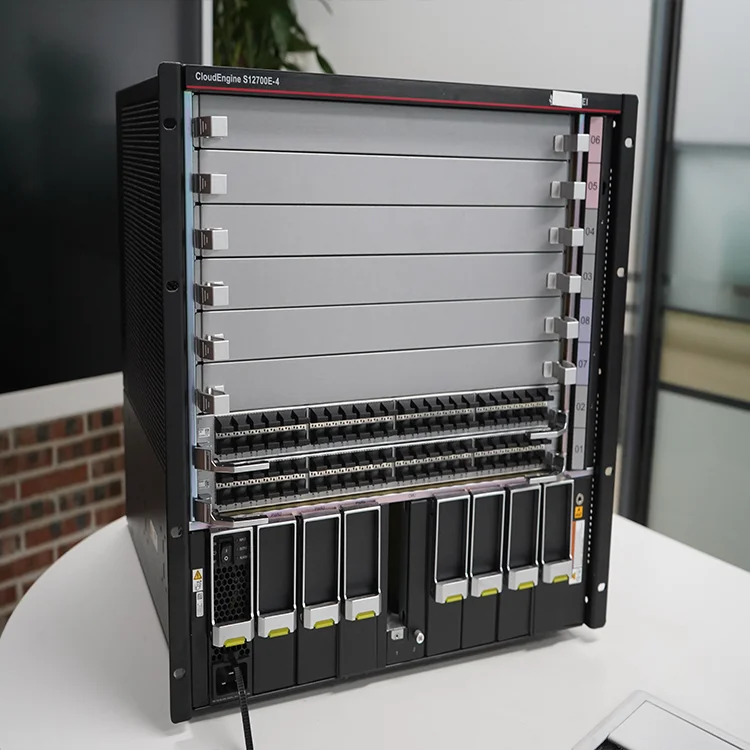

CloudEngine S12700E-4
CloudEngine S12700E enables wired and wireless convergence, full-stack openness, and smooth upgrades at the core layer of high-end campus networks. As flagship core switches Cloud Campus portfolio, this series enables you to create simplified,intelligent campus networks centered on service experience.

Product Model	CloudEngine S12700E-4	CloudEngine S12700E-8	CloudEngine S12700E-12
Forwarding Performance	14,400 Mpps	28,800 Mpps	43,200 Mpps
Switching Capacity2	19.2 Tbit/s/28.8 Tbit/s	38.4 Tbit/s/57.6 Tbit/s	57.6 Tbit/s/86.4 Tbit/s
MPU Slots	2	2	2
SFU Slots	2	4	4
Service Card Slots	4	8	12
Fan Slots	2	4	5
Wireless Services	Manages up to 10K APs AP access control, AP domain management, and AP configuration template management Radio channel management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis
iPCA	Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device levels
Super Virtual Fabric (SVF)	Up to 10K clients (access switches and APs) virtualized into a single device Supports a two-layer client architecture Supports third-party devices between SVF parent and clients
VXLAN	VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol

Large-Scale Throughput

Realize unparalleled throughput at your campus core. CloudEngine S12700E utilizes high performance chipset to deliver
industry-leading single-slot bandwidth and 100 GE port density. Discover non-blocking switching and zero packet loss with advanced cell switching technology.

Wired & Wireless Convergence

To simplify operations, converge your wired and wireless networks. Unifying wired and wireless user management and policies helps achieve user- and application-based quality assurance. A single CloudEngine S12700E manages 50,000+ wireless users and 10,240 wireless Access Points (APs).

Full-Stack Openness

The fully programmable Solar chipset enables service updates without requiring hardware replacements. CloudEngine S12700E upgrades and interconnects your customers' existing networks by providing multiple open Application Programming Interfaces (APIs) and leveraging strong ecosystem partnerships.
