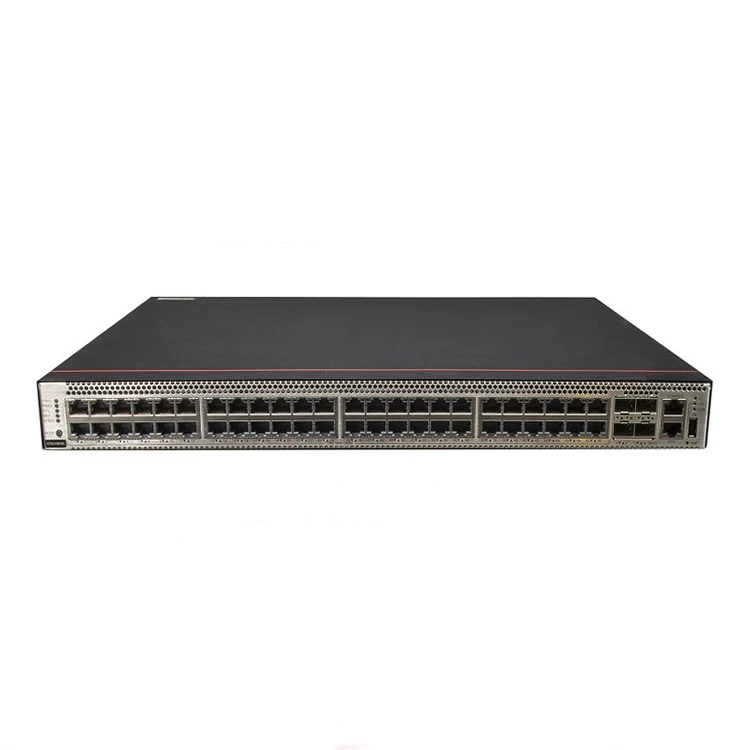

Huawei S5736-S48U4XC Enterprise 10 Gigabit POE Switch 48 Gigabit Electrical Port 40000 Gigabit Optical 40000 Expansion Slot Ethernet

Networking application

S5736-S provides rich terminal security management features, supports POE, Voice VLAN, Qos and other functions, and can easily provide diverse desktop access functions, achieving high-performance networks from gigabit to the desktop. S5736-S provides rich security features to implement security measures such as ARP security, IP security, and iP source attack prevention on access devices. It supports user access control policies such as NAC and ACL, and controls user security at network terminals. S5736-S provides link aggregation features, supports the LACP protocol, and can provide multiple link access for servers, achieving link bandwidth improvement and link backup.

Product Code	S5736-S48U4XC
Chassis height [U]	1U
packet forwarding rate	462 MppsMpps
Fixed interface	48 10/100/1000BASE-T Ethernet ports (POE++), 4 10 Gigabit SFPs+
Power source	1000W PoE AC power supply
relative humidity	5%～95%

CloudEngine S5735-S Series

Product Model	CloudEngine S5735-S24T4X	CloudEngine S5735-S24P4X	CloudEngine S5735-S32ST4X	CloudEngine S5735-S48T4X	CloudEngine S5735-S48P4X	CloudEngine S5735-S48S4X
Forwarding Performance	96 Mpps	96 Mpps	96 Mpps	78 Mpps	132 Mpps	132 Mpps
Switching Capacity2	128Gbps/336 Gbps	128Gbps/336 Gbps	144 Gbps/432 Gbps	176 Gbps/432 Gbps	176 Gbps/432 Gbps	176 Gbps/432 Gbps
Fixed Ports	24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	48 x GE SFP ports, 4 x 10 GE SFP+ ports
PoE+	Not supported	supported	Not supported	Not supported	supported	Not supported
MAC Features	IEEE 802.1d compliance MAC address auto-learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses
VLAN Features	4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping
IP Routing	Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+
Super Virtual Fabric (SVF)	Plug-and-play SVF clients Automatic software package and patch loading to SVF clients One-click and automatic delivery of service configurations Independent SVF client operation
Interoperability	VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP)
