Huawei Network Switch 48 Port S5735-L48T4S-A1 10ge Switch

Products Description

CloudEngine S5735S-L Series Switches
Built on next-generation, high-performance hardware and powered Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols —providing higher performance and more powerful service processing capabilities for networks.

CloudEngine S5735-L48T4S-A1 Specification

Product Name	CloudEngine S5735-L48T4S-A1
Fixed port	48 x 10/100/1000Base- T ports, 4 x GE SFP ports
Power supply type	• AC power supply
Switch Capacity	104 Gbps/432 Gbps

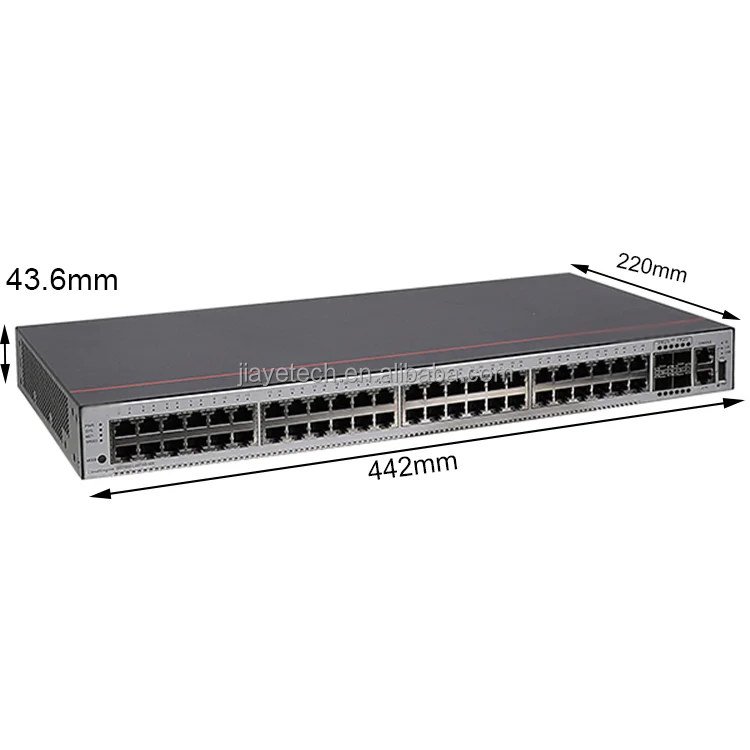

Dimensions (W x D x H)	442mm 220mm 43.6mm
Chassis height	1U
Chassis weight	3.74KG
Ports	48
Storage temperat	-40°C to +70°C
Relative humidity	5% to 95% (non- condensing)

More Products

CloudEngine S5735-L48T4S-A1

•48 x 10/100/1000Base-T ports, 4 x GE SFP ports •AC power supply •Forwarding performance: 78 Mpps Switching capacity: 104 Gbps/432 Gbps

Contact us》》

CloudEngine S5735-L48P4S-A1

•48 x 10/100/1000Base-T ports, 4 x GE SFP ports •AC power supply •PoE+ •Forwarding performance: 78 Mpps Switching capacity: 104 Gbps/432 Gbps

Contact us 》》

CloudEngine S5735-L48T4X-A1

•48 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports •AC power supply Forwarding performance: 132 Mpps Switching capacity: 176 Gbps/432 Gbps

Contact us》》

CloudEngine S5735-L48P4X-A1

•48 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports •AC power supply •PoE+ •Forwarding performance: 132 Mpps Switching capacity: 176 Gbps/432 Gbps

Contact us》》

Small- or Medium-scale Enterprise Campus Network

CloudEngine S5735-L series switches can be deployed at the aggregation layer of a campus network to build a high- performance, multi-service, and highly reliable enterprise network.

Large-Scale Enterprise Campus Network

CloudEngine S5735-L series switches can be deployed at the access layer of a campus network to build a high-performance and highly reliable enterprise network.

Application area

Widely applicable fields

Banks, hospitals, enterprises, schools, supermarkets, households, etc
