Huawei CloudEngine S5735-S24T4X 24X 10/100/1000BASE-T 4X 10 for GE SFP+ Ports 1U POE Switch QoS SNMP VLAN Function New Stocked 1 Year

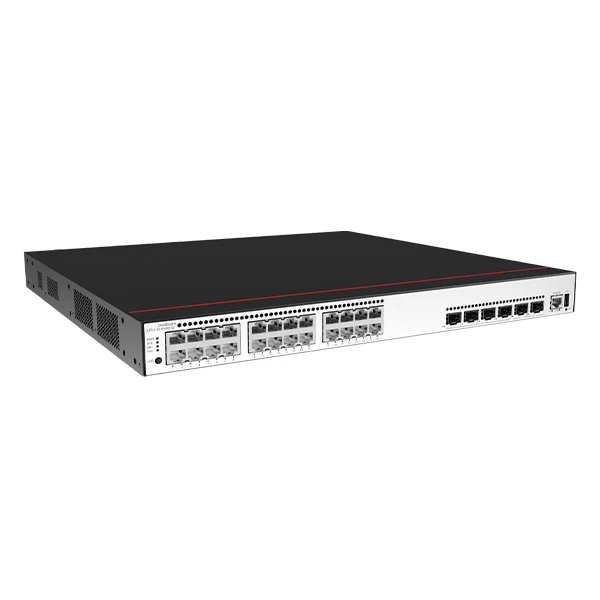

Original 24 x 10/100/1000BASE-T ports Switch S5735-S24P4XE-V2

CloudEngine S5735-S-V2 series all-optical switches build on a next-generation high-performance hardware platform and a unified software platform to provide enhanced Layer 3 features, easy Operations and Maintenance (O&M), flexible Ethernet networking, and mature IPv6 features. With these merits, CloudEngine S5735-S-V2 series can be widely used in enterprise campus access and aggregation, and data center access scenarios.

Product Code	S5735-S24P4XE-V2
Fixed ports	24 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Forwarding Performance	132 Mpps
Switching Capacity	176 Gbps / 520 Gbps
Chassis height(U)	1u
Input voltagel	• AC Power - Rated AC voltage: 100V to 240V AC; 50/60 Hz - Max. AC voltage: 90V to 290V AC; 45–65 Hz • DC Power - Rated DC voltage: –48V~–60V - Max. DC voltage:-38.4V DC~-72V DC
VLAN	* 4094 VLANs * Voice VLAN * MUX VLAN * VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports * Basic QinQ & Selective QinQ
IP Routing	Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6

CloudEngine S5735-S Series Switches
CloudEngine S5735-S is a series of standard gigabit access switches that provide 24–48 flexible all-GE downlink ports and four fixed 10 GE uplink ports.
S5735-S switches are designed for scenarios such as enterprise campus network access and aggregation, as well as data center access. Built on next-generation, high-performance hardware and with the Versatile Routing Platform (VRP), CloudEngine S5735-S switches boast advanced features, such as enhanced Layer 3 functionality, simplified O&M, flexible Ethernet networking, and mature IPv6 capabilities.

CloudEngine S5735-S Series

Product Model	CloudEngine S5735-S24T4X	CloudEngine S5735-S24P4X	CloudEngine S5735-S32ST4X	CloudEngine S5735-S48T4X	CloudEngine S5735-S48P4X	CloudEngine S5735-S48S4X
Forwarding Performance	96 Mpps	96 Mpps	96 Mpps	78 Mpps	132 Mpps	132 Mpps
Switching Capacity2	128Gbps/336 Gbps	128Gbps/336 Gbps	144 Gbps/432 Gbps	176 Gbps/432 Gbps	176 Gbps/432 Gbps	176 Gbps/432 Gbps
Fixed Ports	24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	48 x GE SFP ports, 4 x 10 GE SFP+ ports
PoE+	Not supported	supported	Not supported	Not supported	supported	Not supported
MAC Features	IEEE 802.1d compliance MAC address auto-learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses
VLAN Features	4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping
IP Routing	Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+
Super Virtual Fabric (SVF)	Plug-and-play SVF clients Automatic software package and patch loading to SVF clients One-click and automatic delivery of service configurations Independent SVF client operation
Interoperability	VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP)
