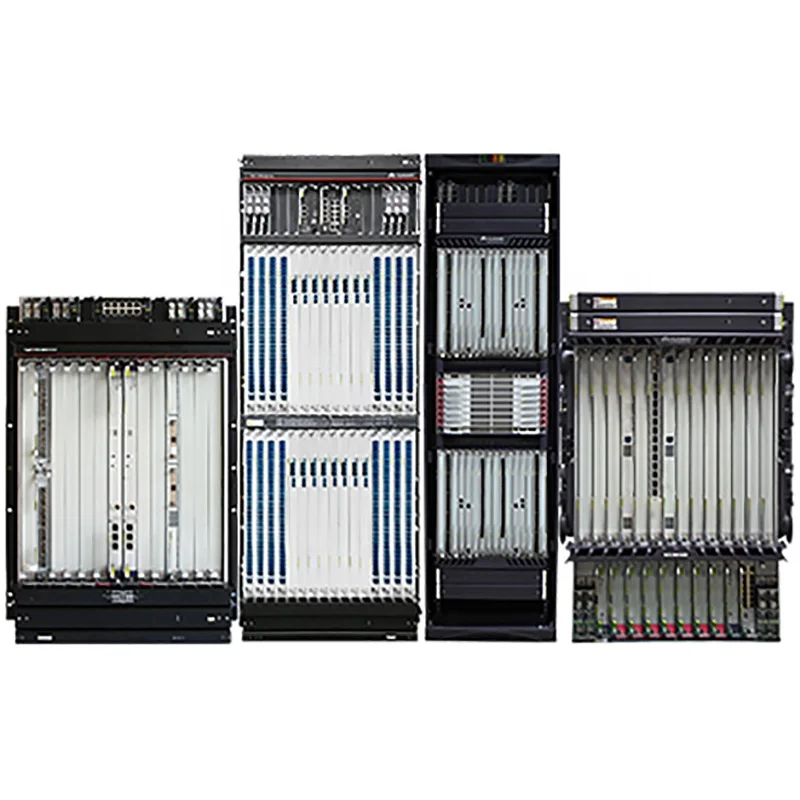

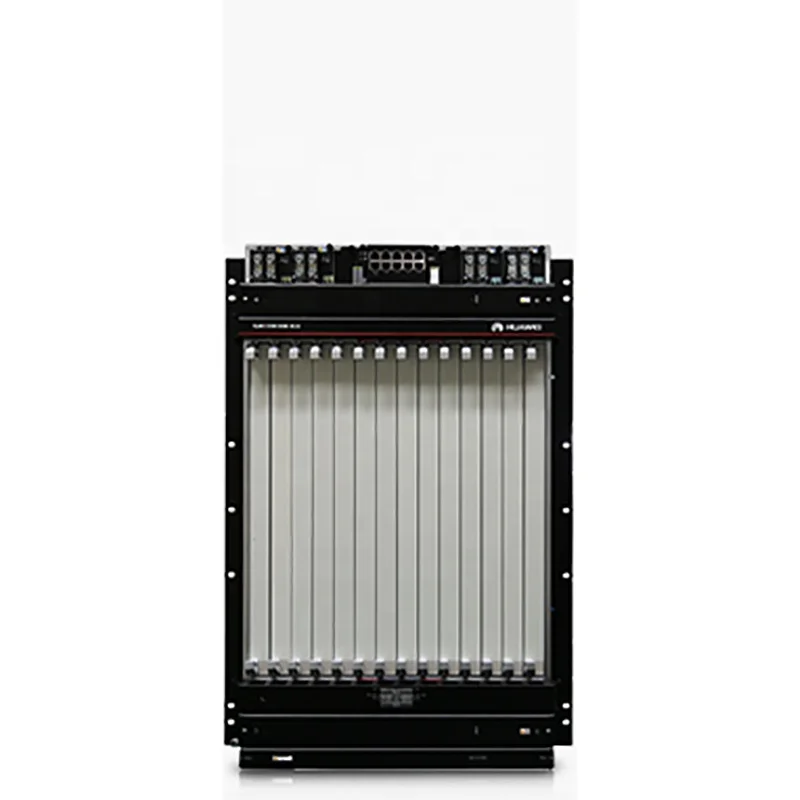

Huawei OptiX OSN 9800 optical transport network equipment

Product Description

Specification

Model Number	OptiX OSN 9800
Type	ONU
Place of Origin	China
Use	optical transport network
Warranty Time	3 YEARS

Subrack dimensions (mm)	747.2 mm (H) x 442 mm (W) x 295 mm (D)
Suitable cabineta	* ETSI 300/600 cabinets, such as A63B * 19-inch cabinet
Number of slots for service boards	1:1 cross-connect mode: 12 large slots or 24 small slots 1:3 cross-connect mode: 10 large slots or 20 small slots
Switching capability Electrical	* 1:1 cross-connect mode: * 4.8 Tbit/s ODUk2.4 Tbit/s packet services1.92 Tbit/s VC-480 Gbit/s VC-3/VC-12 * 1:3 cross-connect mode: * 10 Tbit/s ODUk2 Tbit/s packet services1.6 Tbit/s VC-480 Gbit/s VC-3/VC-12
Max. number of wavelengths	* Fixed grid: 96 wavelengths @50 GHz grid * Flex grid: The maximum number of wavelengths is related to the width of the flex channel.
Wavelength range	1529.16 nm-1567.13 nm (extended C-band, ITU-T G.694.1)
Max. rate per channel	400G bit/s (OTUC4)
Service type	Synchronous digital hierarchy (SDH)/synchronous optical network (SONET), Ethernet, SAN, OTN, video
Packet service capacity	* Support E-Line/E-LAN (MEF) and VPWS/VPLS (IETF) * Support MPLS-TP * Number of MPLS tunnel: 64x1024 * Number of PW: 64x1024 * Number of E-Line: 32x1024 * Number of E-LAN: 8x1024
Line rate	10Gbit/s, 100 Gbit/s, 200G bit/s, 400G bit/s
Supported pluggable optical modules	eSFP, SFP+, TSFP+, CFP, CFP2, QSFP28
Power Supply	* Nominal working voltage: -48V DC/-60V DC * Working voltage range: * -48 V DC: -40 V to -57.6 V-60 V DC: -48 V to -72 V

Company Profile

Beijing Jiayetongchuang Technology Co., Ltd. was founded in 2009 and based in Beijing China, Our company is a professional network equipment supplier, We focus on providing original new network products(Cisco, Huawei, H3C, and Ruckus), including switches, routers, firewalls, wireless AP/AC, storages, servers, modules and so on. We haver over 10 years of rich experiences in trade and integration business, We have a excellent sales team and technical team to offer free consultations, high quality technical supports and thoughtful after-sales services for you at any time. "Quality first, price reasonable, honestly cooperate" is that we always adhere to the spirit of enterprise, We look forward to establishing a close rapport with you. Welcome to contact us !

FAQ

1. who are we?
We are based in Beijing, China, start from 2009,sell to Domestic Market(90.00%),North America(1.00%),South America(1.00%),Western Europe(1.00%),Southern Europe(1.00%),Eastern Asia(1.00%),Central America(1.00%),Northern Europe(1.00%),Eastern Europe(1.00%),Mid East(1.00%),Southeast Asia(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Switch/Router/Firepower/Access Controllers/Optical Module

4. why should you buy from us not from other suppliers?
We focus on providing original new network products(Cisco, Huawei, H3C, and Ruckus), including switches, routers, firewalls, wireless AP/AC, storages, servers, modules and so on. We haver over 10 years of rich experiences in trade and integration business.

5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

Digital
Memory	DDR4
