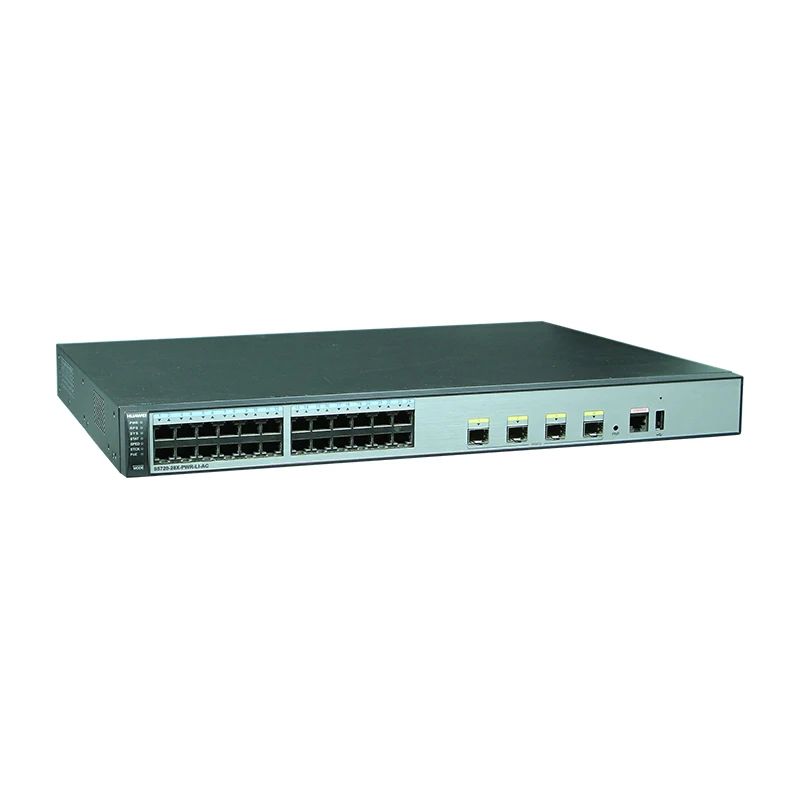

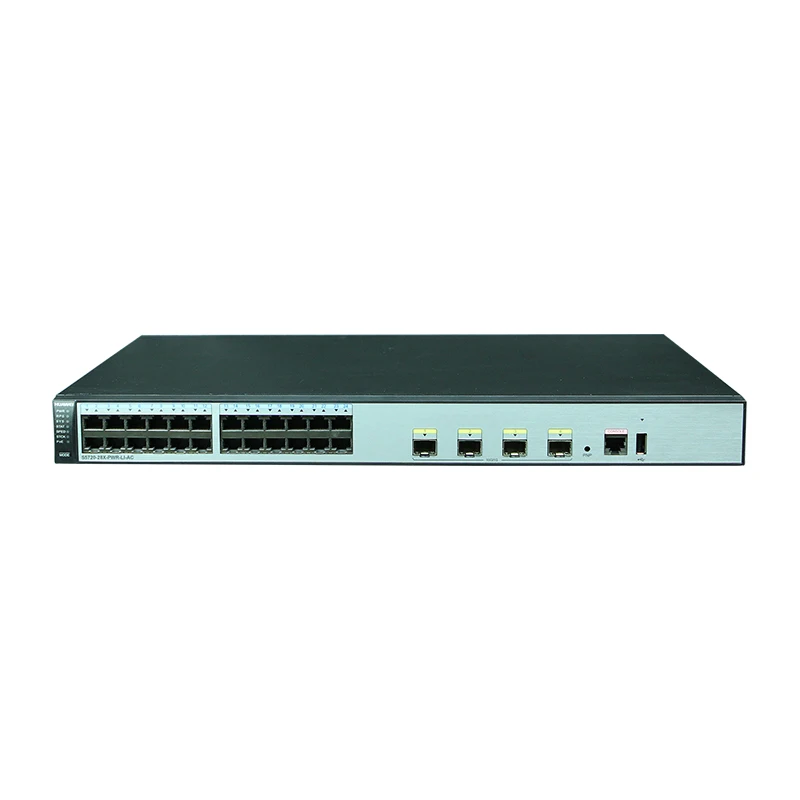

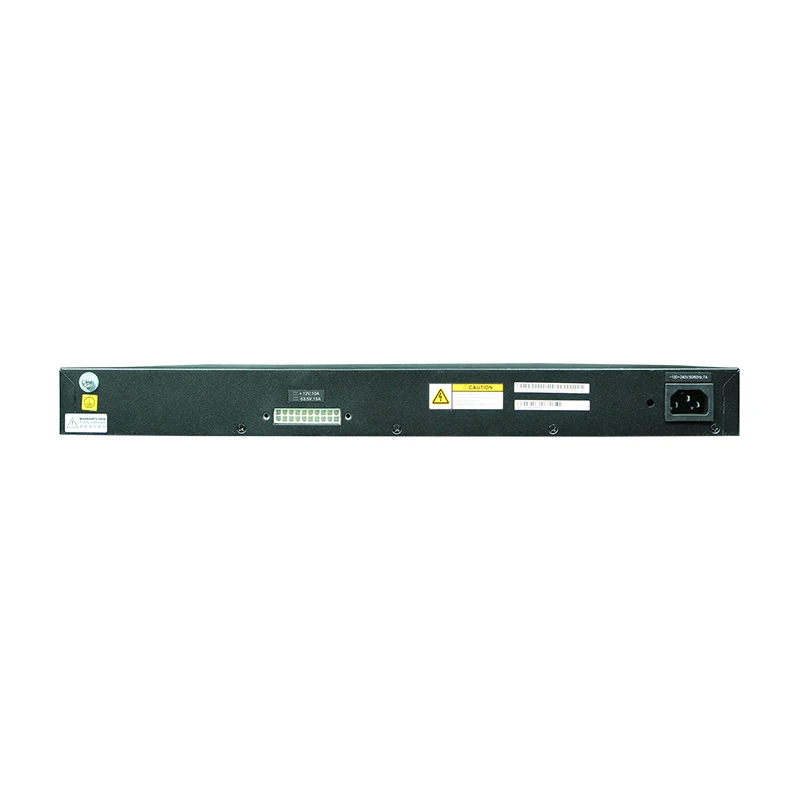

Huawei Best Price New in Box S5720-28X-LI-AC Gigabit Fiber Optic Ethernet Switch Stackable Function

Model

S5720-28X-LI-AC(DC)
S5720-28X-PWR-LI-AC
S5720-28X-LI-24S-AC(DC)
S5720-28X-PWR-LI-ACF

S5720-52P-LI-AC
S5720-52P-PWR-LI-AC

S5720-52X-LI-AC(DC)
S5720-52X-PWR-LI-AC
S5720-52X-LI-48S-AC
S5720-52X-PWR-LI-ACF

Switching Capacity

336 Gbit/s

336 Gbit/s

336 Gbit/s

Forwarding Performance

108 Mpps

87 Mpps/144 Mpps
Note: The specifications, which are to the right of the slash (/), can be achieved by loading the GE to 10G electronic RTU
license.

144 Mpps

Fixed Ports

S5720-28X-LI-24S-AC(DC): 24 x Gig SFP ports, 8 of which are dual-purpose 10/100/1,000 Base-T or SFP ports, 4 x 10 Gig SFP+ ports
Others: 24 x Ethernet 10/100/1,000 Base-T ports, 4 x 10 Gig SFP+ ports

48 x Ethernet 10/100/1,000 Base-T ports, 4 x Gig SFP ports

S5720-52X-LI-48S-AC: 48 x Gig SFP, 2 of which are dual-purpose 10/100/1,000 Base-T or SFP, 4 x 10 Gig SFP+
Others: 48 x Ethernet 10/100/1,000 Base-T ports, 4 x 10 Gig SFP+ ports

MAC Address Table

16K MAC address entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses

VLAN

4,094 VLANs
Guest VLAN and voice VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
VLAN mapping
Super VLANBasic QinQ and selective QinQ

IP Routing

Static routing, RIP, RIPng, OSPF, and OSPFv3

Interoperability

VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP)
VCMP (similar to VTP)
